Graphite Copper Oilless TCB500 Solid Lube Bearings

  • 1
  • 2

Brand Name : SEAMOUNT

Model Number : TCB500

Certification : ISO, CE

Place of Origin : China

MOQ : 1 piece

Price : USD 10-15/kg

Payment Terms : T/T, Western Union

Supply Ability : 50000KG per month

Delivery Time : 5-30 work days

Packaging Details : Standard export wooden case

Material : CuZn25Al5Mn4Fe3

Lubrication : Graphite self lubricating

Types : Sleeve,Flange,Washer,Sliding plate

Surface treatment : Oiled,embed graphite

Application : rolling machines, mine-exploiting equipments, ships

Size : Customized

Tensile strength : >750N/mm²

Temp. Limits : -40~+200 ℃

Contact Now

Customized Graphite Copper Oilless TCB500 Solid Lubricating Bearing Bushing

Product Description

TCB500 solid lubricating bearing is produced by strengthening brass that has good physical performance and good capability for casting. What's more, the brass material has pretty good anti-erosion ability in air, fresh water and sea water. The surface is regularly and finely machined with sockets in which particular solid lubricant is filled. Its material is CuZn25Al5Mn4Fe3. The material of copper alloy could be changed as per customer's requirements.

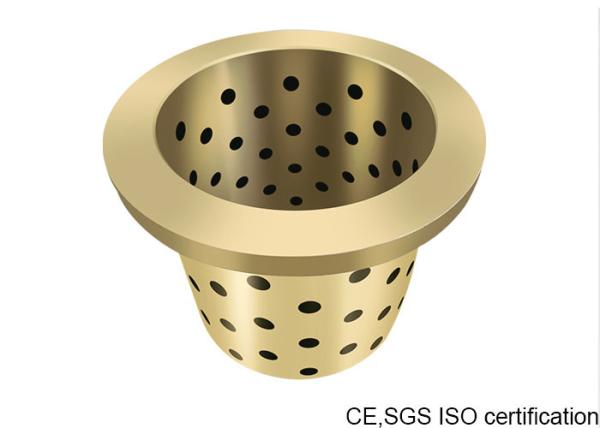

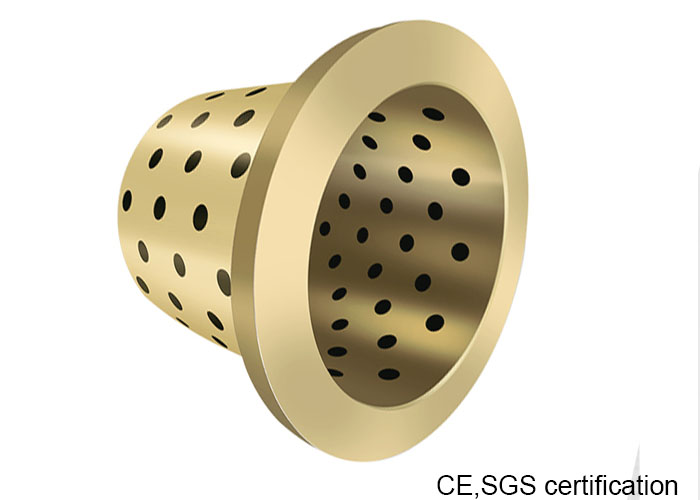

Graphite Copper Oilless TCB500 Solid Lube Bearings

Size Customized
Material CuZn25AI5Mn4Fe3
Color Natural
Certification ISO9001, TS16949
Density 8g/cm³
Hardness >210HB
Tensile strength >750N/mm²
Yeild strength >340N/mm²
Elongation >12%
Coefficient of linear expansion 2.2*10-5/℃
Heat-conducting Coefficient 38~55W(/m.k)
Flexibility Coefficient 100~140KN/mm²
Temp. Limits -40~+200 ℃
Max. Dynamic Load 98 N/mm²
Max.speed Dry Lubrication 0.3m/s,Oil Lubrication 1m/s
Max.PV Dry Lubrication 1.65N/mm²*m/s,Oil Lubrication 3.25N/mm²*m/s
Friction Dry Lubrication 0.12~0.16,Oil Lubrication 0.03~0.08
Application consecutive casting and rolling machines, mine-exploiting equipments, ships, steam engine

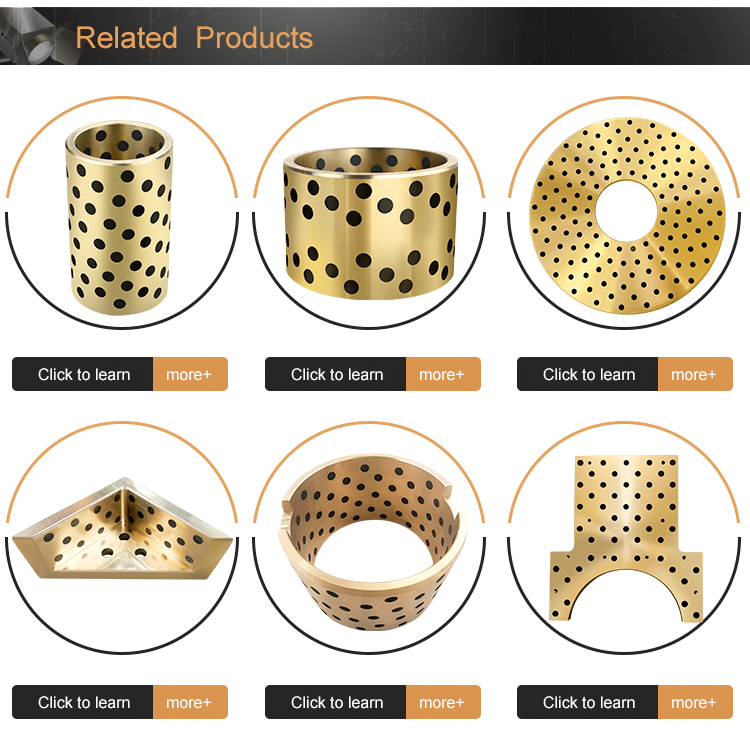

Related products

Graphite Copper Oilless TCB500 Solid Lube Bearings

Packaging Details

Packing Details: Anti-rust Paper, Carton, Wood Case or Pallet


1. Inner Packing
For small products: 100pcs-200pcs per sealed plastic bag.
For bigger products: 2pcs-10pcs per plastic film roller (depends on the product size)


2. Outer Packing
8pcs-300pcs per carton (depends on the product size)


3. Shipment Packing
18-24 cartons per wood case or pallet, shockproof and safe for transportation.
